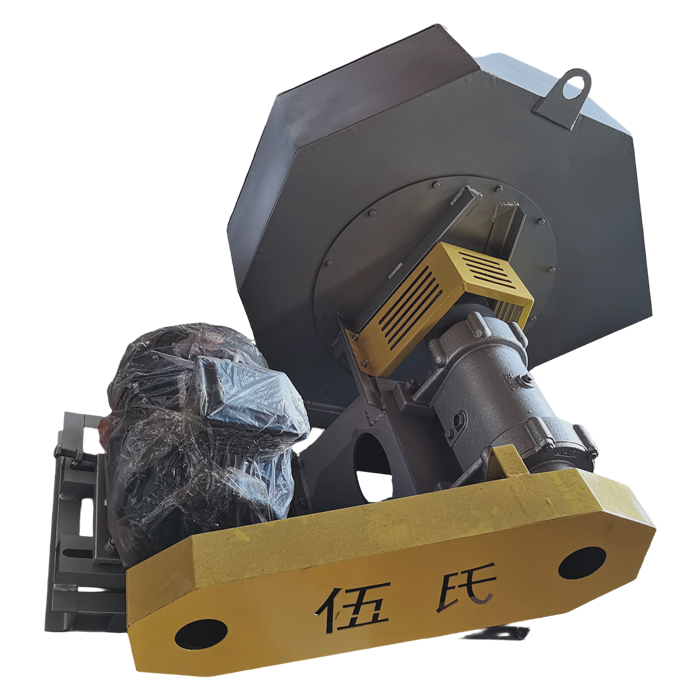

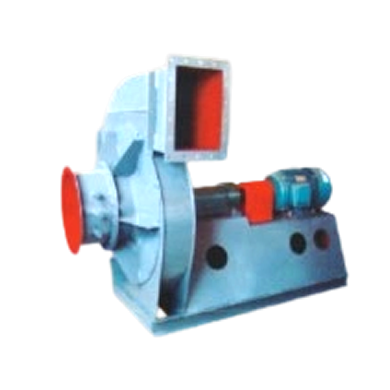

9-26 High Pressure Centrifugal Fan Series

The 9-26 series fans are generally used for high-pressure forced ventilation in industries such as forging furnaces, glass, electroplating, ceramics, batteries, and radio. They can also be widely used for material transportation in processing industries such as grain, feed, and mineral powder. They are also suitable for supporting use in cardboard machinery equipment, tempered glass equipment, and other related fields. The medium being transported is air and other non self igniting, harmless, and non corrosive gases. Viscous substances are not allowed in the gas. Generally, the temperature used for ventilation should not exceed 80 ℃, and the dust and hard particles contained should be less than 150mg/m.

9-26 series high-pressure centrifugal fan

机号 Model(№)	功率 Power(kW)	转速 Rotation(r/min)	流量 Volume(m³/h)	全压 Pressure(Pa)
3.5A	3	2900	1473～2154	2950～2608
4A	5.5	2900	2198～3215	3852～3407
4A	7.5	2900	3000～5000	2835～1060
4.5A	7.5	2900	3130～3685	4910～4776
4.5A	11	2930	3963～4792	4661～4256
5A	15	2930	4293～6349	6035～5381
5A	18.5	2930	6762	5180
5.6A	22	2930	6032～7185	7610～7400
5.6A	30	2950	7766～9500	7218～6527
6.3A	45	2970	8588～11883	9698～8915
6.3A	55	2970	12699～13525	8636～8310
7.1D	75	2970	12292～14643	12427～12078
7.1D	110	2980	15826～19360	11776～10635
8D	132	2980	17584～20947	15955～15504
	200	2980	22640～27696	15112～13634
	30	1470	13001～13848	3421～3294
	18.5	1450	8792～12166	3834～3529
9D	45	1480	16118～19717	4620～4181
9D	30	1470	12518～14913	4869～4736
10D	75	1480	23612～30052	5761～5065
10D	55	1480	17172～21465	6143～5920
11.2D	132	1490	39205～42221	6691～6382
	110	1480	24126～36189	7747～7009
	37	980	23959～27953	3031～2763
	30	980	15973～21963	3346～3140
12.5D	250	1490	46117～58695	9103～7993
	160	1490	33540～41925	9713～9356
	75	990	33309～38860	3785～3450
	45	980	22206～30533	4179～3921
14D	75	990	31197～35097	5262～5188
14D	250	1490	47121～53011	12285～12109
16D	500	1490	70339～79131	16250～16014
16D	200	990	75675～81496	5971～5696
