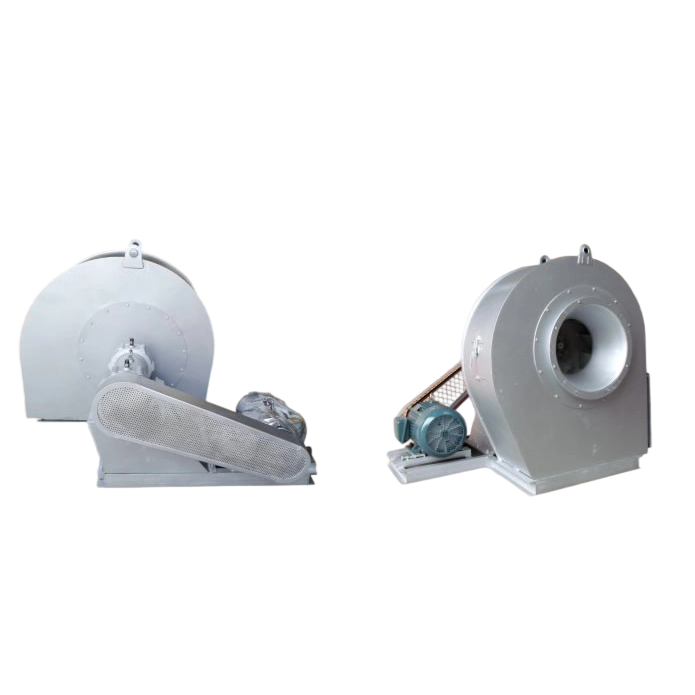

Y6-48 type multi rod furnace stainless steel circulating fan
Y6-48 type multi rod furnace stainless steel circulating fan
Characteristics of Y6-48 multi rod furnace stainless steel circulating fan:
The fan adopts forward curved acceleration blades, which have the characteristics of high flow rate, high pressure, low noise, stable performance, and low dust accumulation.
It is the main equipment for waste heat utilization, energy conservation, and high-temperature gas transportation.
Suitable for aluminum long rod furnaces, multi rod furnaces and other equipment.
It is also suitable for various occasions where high-temperature gases are transported.
Working temperature: 350-600 ℃
Technical parameter
机号 Model(No) | 功率 Power(kW) | 转速 Rotation(r/min) | 流量 Volume(m³/h) | 全压 Pressure(Pa) |
3.15C | 3 | 3150 | 3017～3323 | 1507～1376 |
2.2 | 3150 | 1487～2711 | 1880～1615 | |
2.2 | 2800 | 2410～2954 | 1274～1086 | |
1.5 | 2800 | 1322～2138 | 1483～1344 | |
1.5 | 2500 | 2152～2637 | 1015～865 | |
1.1 | 2500 | 1180～1909 | 1181～1070 | |
1.1 | 2240 | 1057～2363 | 948～694 | |
0.75 | 2000 | 944～2110 | 755～553 | |
0.75 | 1800 | 850～1899 | 611～448 | |
0.75 | 1600 | 755～1688 | 483～354 | |
4C | 4 | 2500 | 3932～5495 | 1737～1384 |
3 | 2500 | 2369～3411 | 1933～1810 | |
3 | 2240 | 3056～4924 | 1451～1110 | |
2.2 | 2240 | 2122～2589 | 1550～1505 | |
2.2 | 2000 | 1895～4396 | 1234～884 | |
1.5 | 1800 | 1706～3957 | 999～716 | |
1.5 | 1600 | 3183～3517 | 624～565 | |
1.1 | 1600 | 1516～2850 | 789～672 | |
0.75 | 1400 | 1326～3077 | 603～433 | |
0.75 | 1250 | 1184～2748 | 481～345 | |
5.3C | 5.5KW | 1800 | 3809～9243 | 1777～1257 |
5.3C | 2-7.5KW | 2000 | 4232～10270 | 2194～1552 |
5.6C | 2-7.5KW | 1900 | 4742～11509 | 2211～1563 |
6C | 5.5KW | 1450 | 4451～10803 | 1478～1045 |
6C | 7.5KW | 1600 | 4912～11920 | 1800～1273 |
6.3C | 7.5 | 1600 | 5686～8233 | 1985～1866 |
11 | 1600 | 9713～13799 | 1782～1403 | |
5.5 | 1400 | 4975～8499 | 1517～1362 | |
7.5 | 1400 | 9743～12074 | 1279～1073 | |
4 | 1250 | 4442～7588 | 1208～1085 | |
5.5 | 1250 | 8699～10781 | 1019～855 | |
3 | 1120 | 3980～7794 | 969～818 | |
4 | 1120 | 8831～9660 | 755～686 | |
2.2 | 1000 | 3554～6071 | 772～693 | |
3 | 1000 | 6959～8625 | 651～547 | |
1.5 | 900 | 3198～4631 | 625～588 | |
2.2 | 900 | 5464～7762 | 561～443 | |
1.1 | 800 | 2843～4116 | 494～464 | |
1.5 | 800 | 4857～6900 | 443～350 |
